EPC Series Electric Screw Press
Category:
Product Category
EPC Series Electric Screw Press
Product Details
The EPC series CNC electric screw press adopts advanced electric screw press technology from the world forging industry in the electrical part, and excellent clutch type screw press technology from the forging industry in the mechanical part. It is a domestically advanced CNC electric screw press jointly developed with domestic research institutes.
The forging and pressing equipment has strong adaptability, significant energy conservation and environmental protection, and a high degree of automation. Suitable for both hot forging and precision forging and finishing; It is also suitable for the welding process of stainless steel double bottom pots, as well as the precision forging of titanium alloy blades or other blades. It is an indispensable advanced equipment for modern forging enterprises.
| EPC-300 3000 kN | ||
| Main technical parameters of CNC electric screw press | ||
| Nominal force | kN | 3000 |
| Allowable force | kN | 5000 |
| Energy of the moving part | kJ | 22 |
| Slide stroke | MM | 400 |
| Number of trips | Times/minute | 28 |
| Maximum strike speed | M/S | 0.7 |
| Mold installation height | MM | 450 |
| Guide rail spacing | MM | 617 |
| Workbench size |
MM |
640×700×100 |
| （Front and rear × Left and right × height） | ||
| Size of the bottom surface of the slider | MM | 580×600 |
| （Front and rear×Left and right） | ||
| Motor power | KW | 2×22 |
| External dimensions | MM | 2000×2200×3900 |
| （Front and rear × Left and right × height） | ||
| Quality | KG | ～16000 |
| Height above ground | MM | 3900 |
Previous
Next
Previous
Next
Production equipment

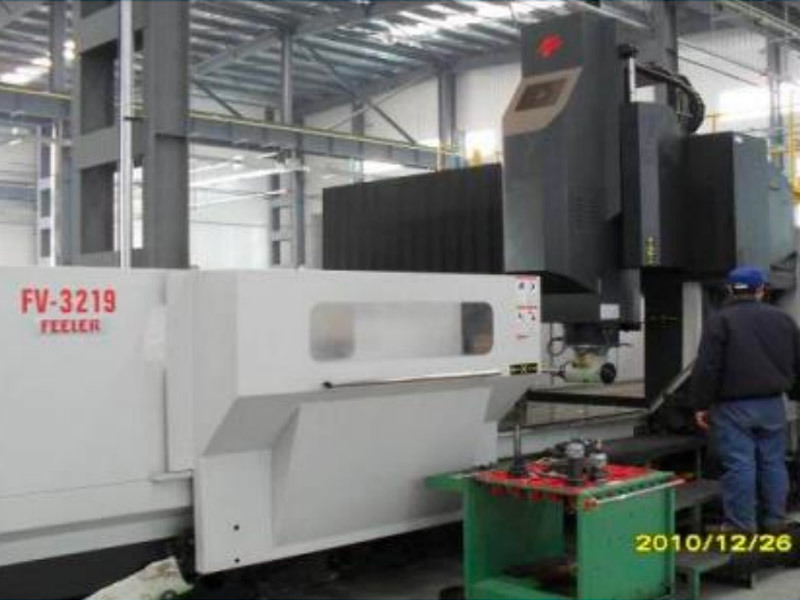

12600 * 4200 moving beam and column gantry machining center.
For ultra long and oversized workpieces, they can be processed as a whole in one go.

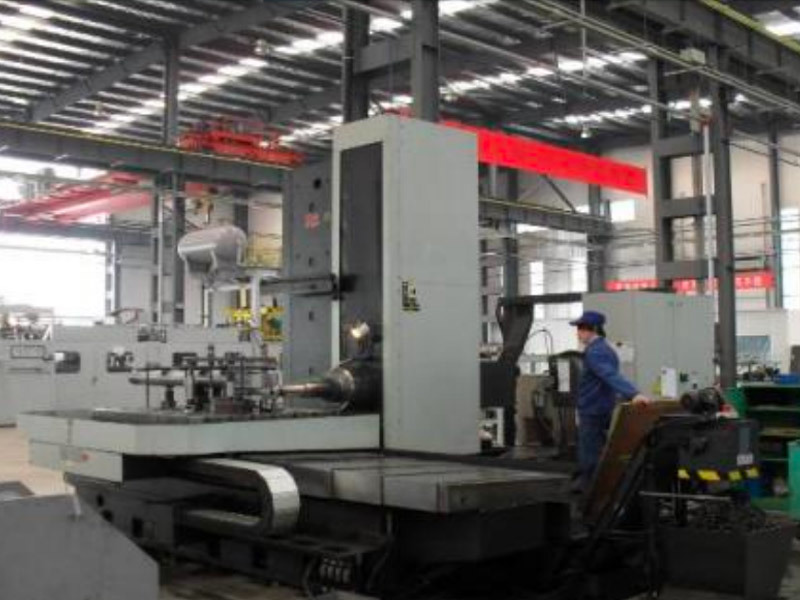

12000 * 5000 CNC landing CNC.
In a single clamping process for medium, large, and heavy workpieces, drilling, reaming, boring, grooving, and flat milling can be completed.

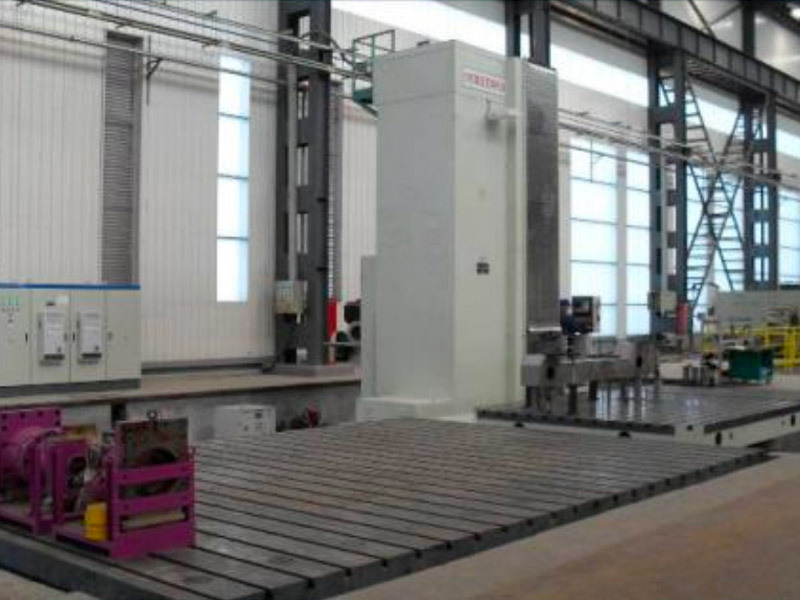

3000 * 3000 rotary horizontal milling 5-axis machining center.
The most advanced international processing equipment with rotary processing function can achieve single clamping of large parts and complete overall processing in one go.

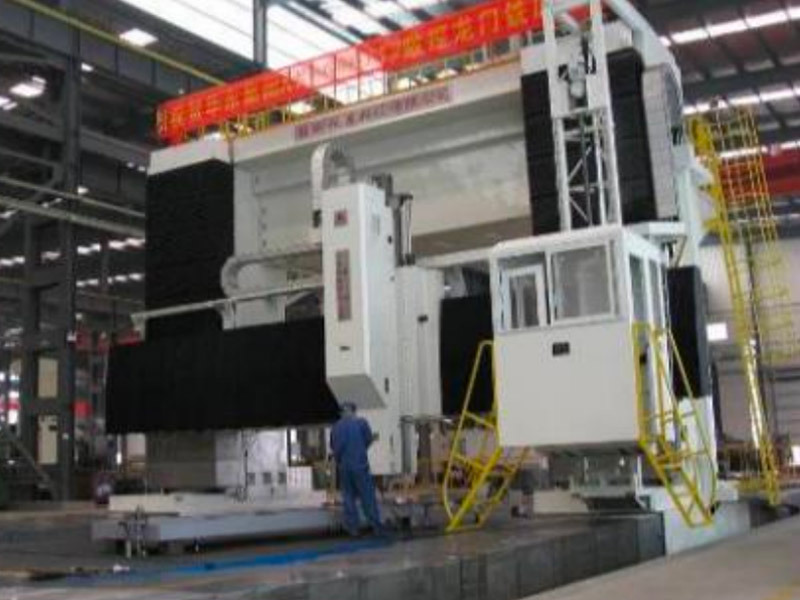

8000 * 4000 gantry five axis machining center.
All equipment bases are processed in one go to ensure the flatness and stability of the equipment.
4000 * 2000 gantry five axis.
Multi sided one-time processing of complex large parts to ensure vertical accuracy of the equipment.

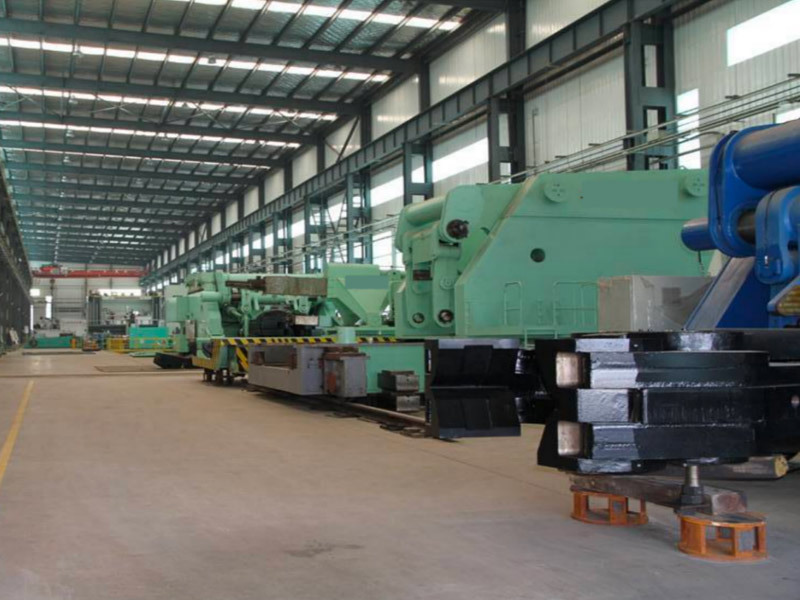

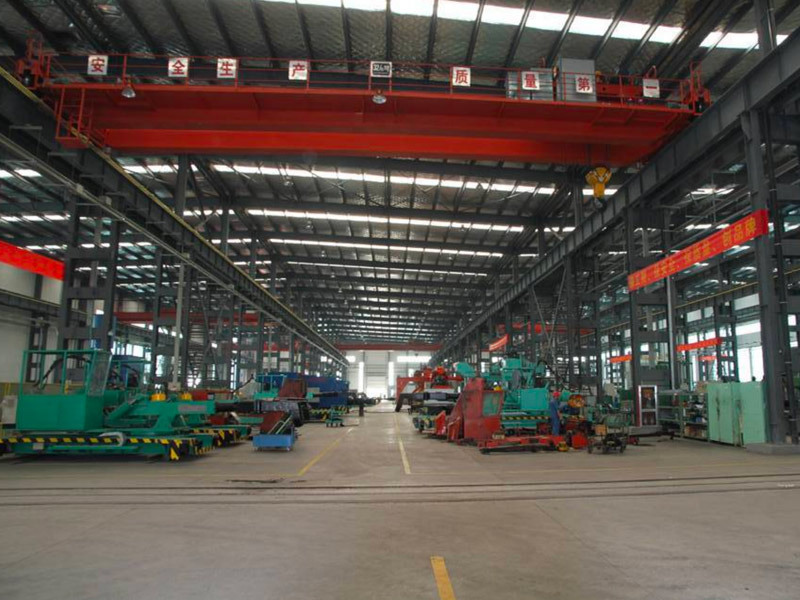

Production workshop
